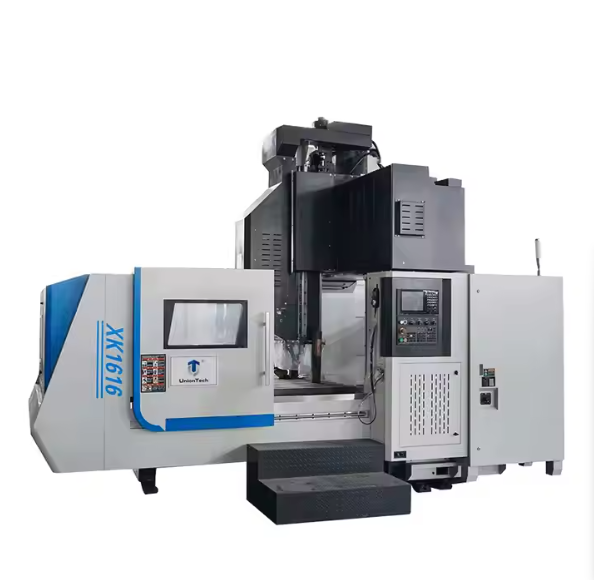

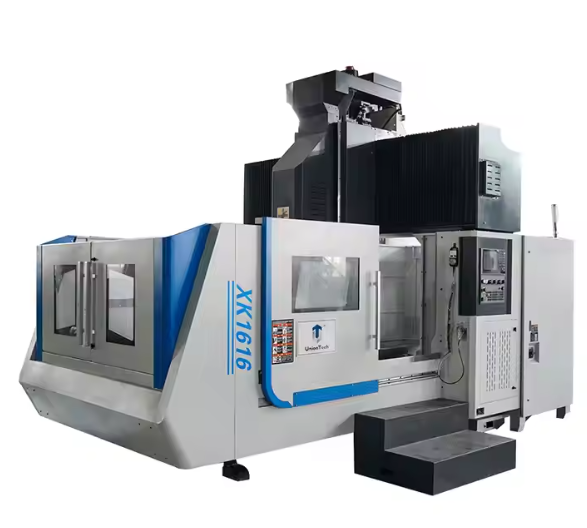

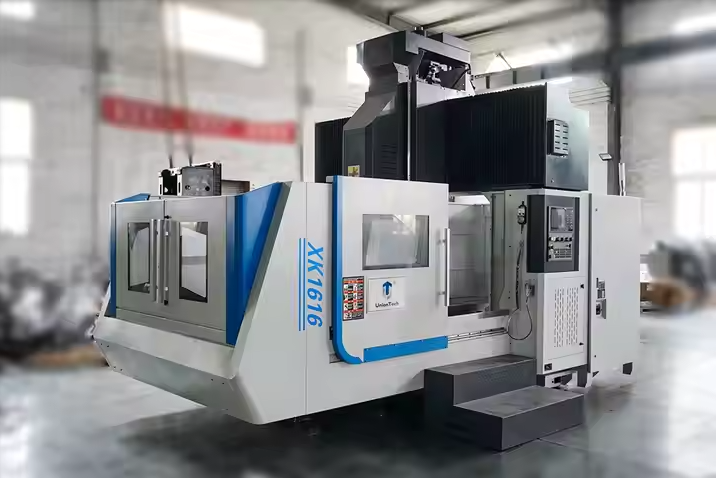

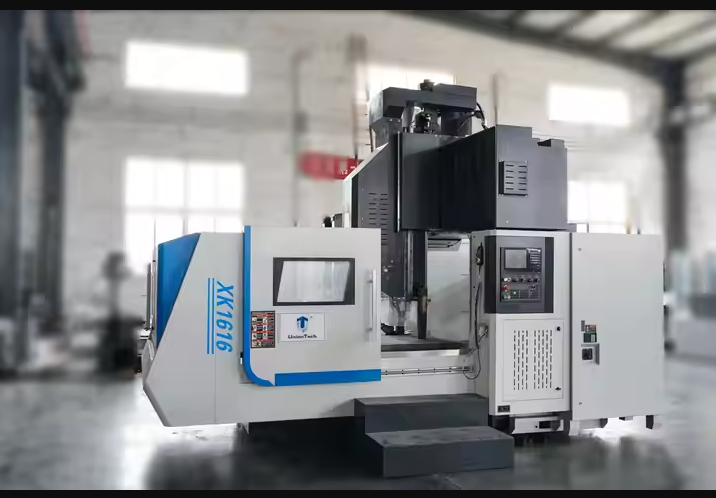

GMC2016 GSK/KND/Fanuc System CNC Gantry Machining Center 3axis 4axis New Mitsubishi/Siemens Automatic Engine Motor BT40

Description

Key Attributes

Industry-specific attributes

Table Size (mm):
1000×500

Number of Axes:
5

Table Travel (X) (mm):
1600

Table Travel (Y) (mm):
1600

Other attributes

Condition:
New

Spindle Taper:
BT40

No. of Spindles:
Single

Type:
Gantry

Weight (T):
13 T

Table Travel (Z) (mm):
600

Positioning Accuracy (mm):
0.0075

Repeatability (X/Y/Z) (mm):
0.005

Range of Spindle Speed (r.p.m):
1 – 8000 r.p.m

Spindle Motor Power (kW):
15/18.5

Max. Table Load (kg):
2500 kg

Min. Time of Tool Change (s):
2

Tool Magazine Capacity:
24

Warranty:
1 Year

Place of Origin:
Shandong

Marketing Type:
New Product 2020

Machinery Test Report:
Provided

Video Outgoing-Inspection:
Provided

Warranty of Core Components:
1 Year

Dimension (LWH):
4500x3000x3600 mm

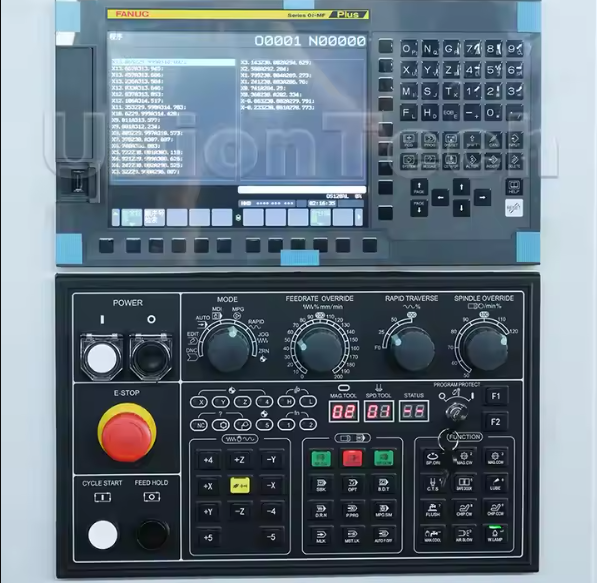

CNC Control System:
GSK, FANUC, KND, Siemens

Key Selling Points:
Automatic

Brand Name:
UnionTech

Voltage:
220V/380V

Name:
GMC1616

Working Area:
16001600600 mm

Control System:
SIEMENS/SYNTEC/GSK/FANUC/Mitsubishi

Spindle:
15 kW Mechanical Spindle

Axis:
4 axis

X, Y Transmission:
Helical Rack Gears & Pinion

Z Transmission:
TBI Ball Screw

Motor:
FANUC Servo Motor

Driver:
FANUC Servo Driver

Precision:
±0.008

Packaging and Delivery

Selling Units:
Single item

Single Package Size:
60x58x40 cm

Single Gross Weight:
50.000 kg
